electronic workshop / esd workbench / esd work station
Product Description
Chinese Professional Manufacturer 1. Ten years experience in the ESD Lab Work bench 2. Adequate Supply of products 3. Professional non-standard custom 4. Cold rolled steel material 5. Optional parts for multifunctional use 6. Products follow the GB3007-97 and EN-61340 antistatic standard. 7. The workbench is permanent unitary antistatic, cut off the headstream of the static threat of the products. Customizable ESD electrical work bench specification 1. Lab Work bench Supports+Back Plane + Front Beam for Combined, Convenient disassembly and assembly 2. Height Adjustable Range of:670~1120mm 3. Uniform Load,Static Load:500kg,Dynamic Load:300kg 4. All work units can be equipped with anti-static castors,With the use of enhanced metal foot cup can enhance the bearing capacity of working table
electrical work bench Product: LDW 2
Electrical work bench details: | Model NO. | Specification | Qty |
| LNA18120 | Adjustable table support 1500*750mm | 1 |
| LND18158-E | Double antistatic table top, gray color,1530*750*25mm | 1 |
| LNC02813 | Perforated tubular frame 2M750*1359mm | 1 |
| LNC38085 | ESD UPPER SHELF M750*390mm | 2 |
| LNC10753 | Steel shelf M750*300mm LOAD: 50KG | 2 |
| LNC50293 | M290*330MM | 1 |
| LNC90903 | lighting stand 2M750*380mm+slide hook | 1 |
| LNC95804 | Prism light 2*30W | 1 |
| LNC48075 | Suspension rail M750 LOAD: 30KG | 2 |
| LNH08075 | L=750 | 1 |
| LNC96801 | Balancer 1.5-3.0kg | 1 |
| LNH13502 | 350×450×250mm LOAD:15kg | 1 |

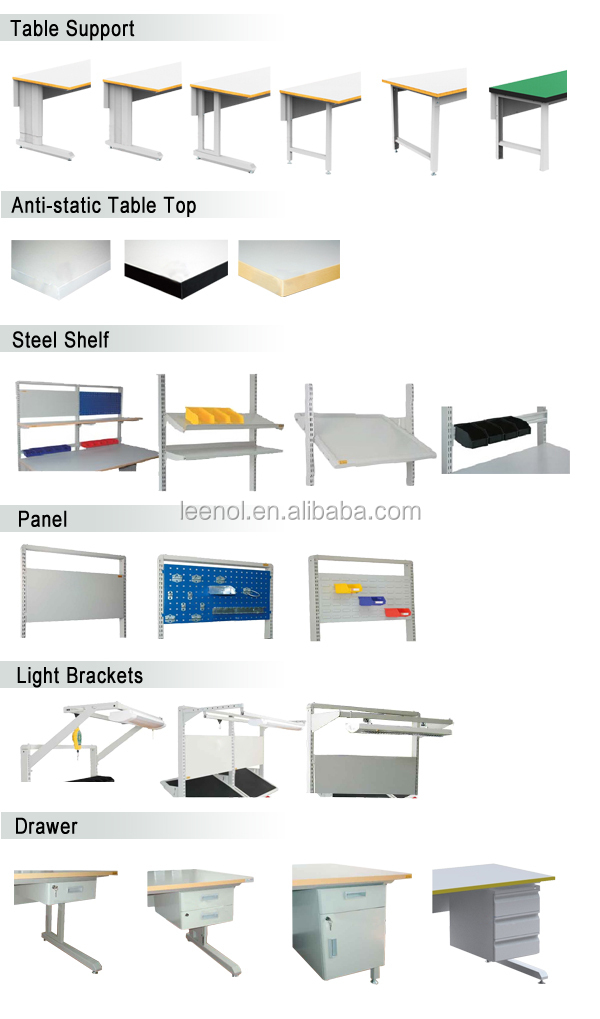

| NO. | PARTS | ESD Work Table Standard Specification | Marks | |
| 1 | Adjustable Table Support | Height adjustable 670-1120mm | Length 1800, 1500,1200mm; Deepth:600,750,900mm | Light duty:300kg, Medium Duty:500kg, L type :500kg, Heavy duty:600kg |
| 2 | Fixed Table Support | Height 760mm | ||
| 3 | Anti-static table top | Thickness 25mm or 50mm | Length:1200,1530,1830mm, Width:600,750,900mm | Steel covered, Stainless Covered, Durable top board Optional |
| 4 | Anti-static Upper Shelf | ESD Laminate or Non-ESD board | Length:1200,1530,1830mm, Width:380mm | Weight loading:50kg |
| 5 | Steel Shelf | Also can be installed 20 degree slant | Length:750,900,1200mm. Width:300,400mm | weight loading: 30kg |
| 6 | Adjustable Steel shelf | Double Brackets optional | Length"750,900mm. Width:650mm | weight loading: 50kg |
| 7 | Suspension Rail For picking Bins | Also can be installed 20 degree slant | Length:750,900,1200mm. | weight loading: 30kg |
| 8 | Panel | Blue, Gray color optional | Length:750, 900, 1200mm. Width:240, 390mm | Placing Drawing paper |
| 9 | Perforated panel | Perforated Hole 9*9mm | Length"750, 900, 1200mm. Width:390mm | Using for Tool hooks |
| 10 | Louvre blade panel | Blue, Gray color optional | Length"750, 900, 1200mm. Width:390mm | Using for Picking Bins |
| 11 | Light Brackets | slant LIGHT BRACKET , | Length 1800, 1500,1200mm; Deepth:380mm | LED light optional |
| 12 | right-angled Light Bracket | LED light optional | ||
| 13 | Simple Light Bracket | LED light optional | ||
| 14 | Drawer | Single Layer | 350×450×125mm | weight loading: 15kg |
| 15 | Double Layer | 350×450×250mm | weight loading: 15kg | |
| 16 | Triple Layer | 350×450×375mm | weight loading: 15kg | |
| 17 | Drawer Cabinet | 350×450×500mm | weight loading: 15kg | |
| 18 | Advanced Triple Layer | 372×486×500mm | weight loading: 35kg | |
| 19 | Parts of energy rail | Slant type, Vertical Type | length:750,900,1200,1500,1800mm | Europe, UK, Australia and America Standard |
Packaging & Shipping

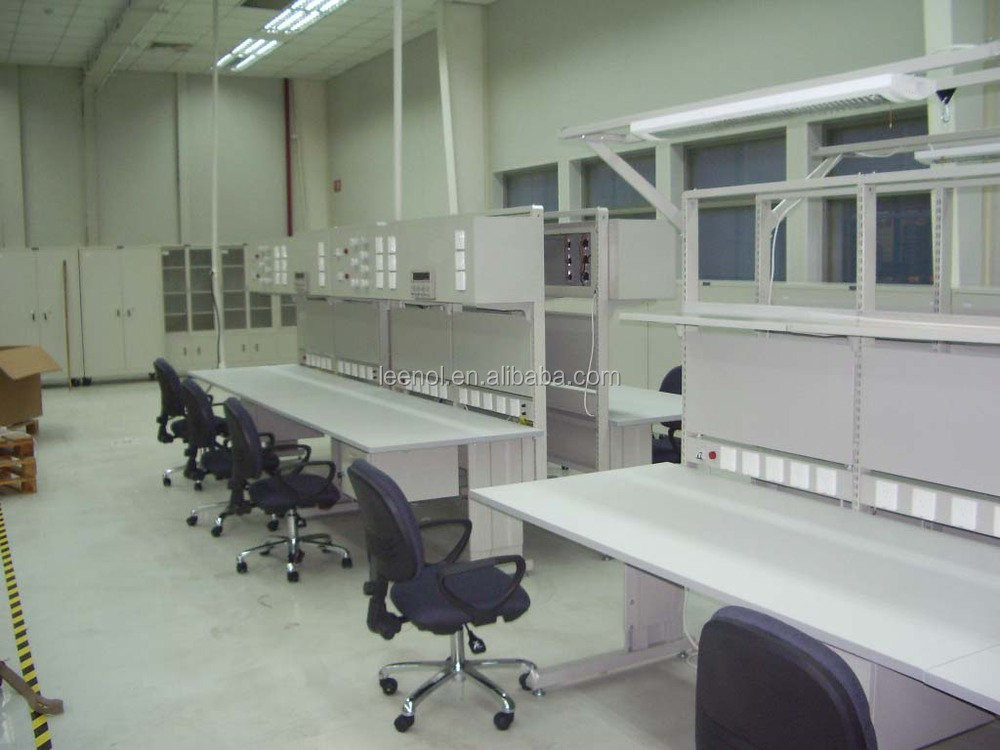

PROJECT EXAMPLE of
Company Information
electronic workshop / esd workbench / esd work station Contact us if you need more details on Work Station. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Esd Workstation、Esd Workbench. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : LeeBench Factory and Lab Furniture > ESD Workbench
